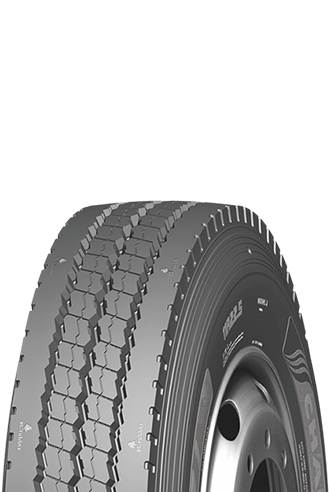

ZC · trucks&buses
AZ687
$150.00
Benefits and Features
-
Deep tread depth and optimised rib width ensures outstanding mileage performance
-
Zig-zag groove provides excellent traction and braking
-
3D siping helps improved traction and even wear.
-
Excellent sidewall protection minimises scuff damage from turning and braking
AZ687
| Size | LR/PR | Service index |
Tread Depth (mm) |
Standard Rim |
Overall Diameter (mm) |
Section Width (mm) |
Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 11R22.5 | G/14 | 144/142J | 20.6 | 8.25 | 1065 | 279 | 2800 | 6175 | 720 | 105 | 2650 | 5840 | 720 | 105 |
| 11R22.5 | H/16 | 148/145J | 20.6 | 8.25 | 1065 | 279 | 3150 | 6940 | 850 | 123 | 2900 | 6390 | 850 | 123 |
AVAILABLE THROUGH SOURCING
REQUEST WHOLESALE QUOTE ↗
This product can be quoted according to your specification, quantity and destination market.
