Description

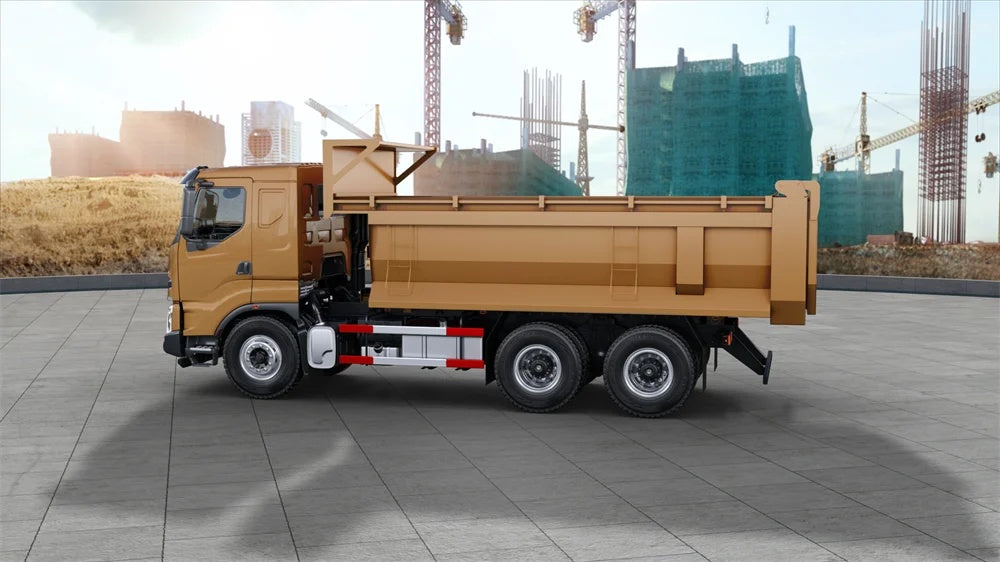

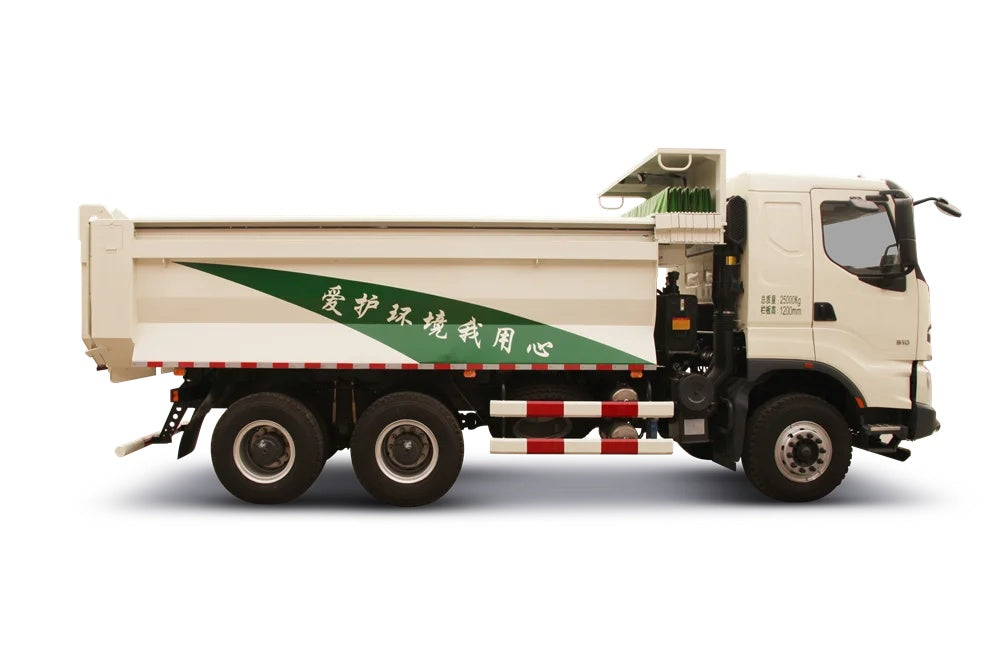

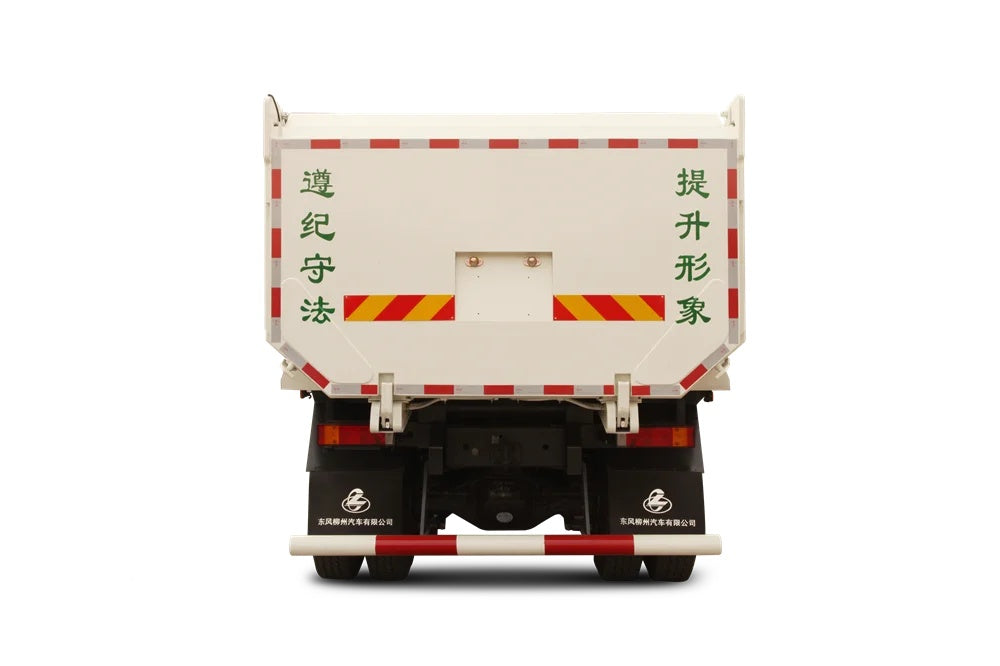

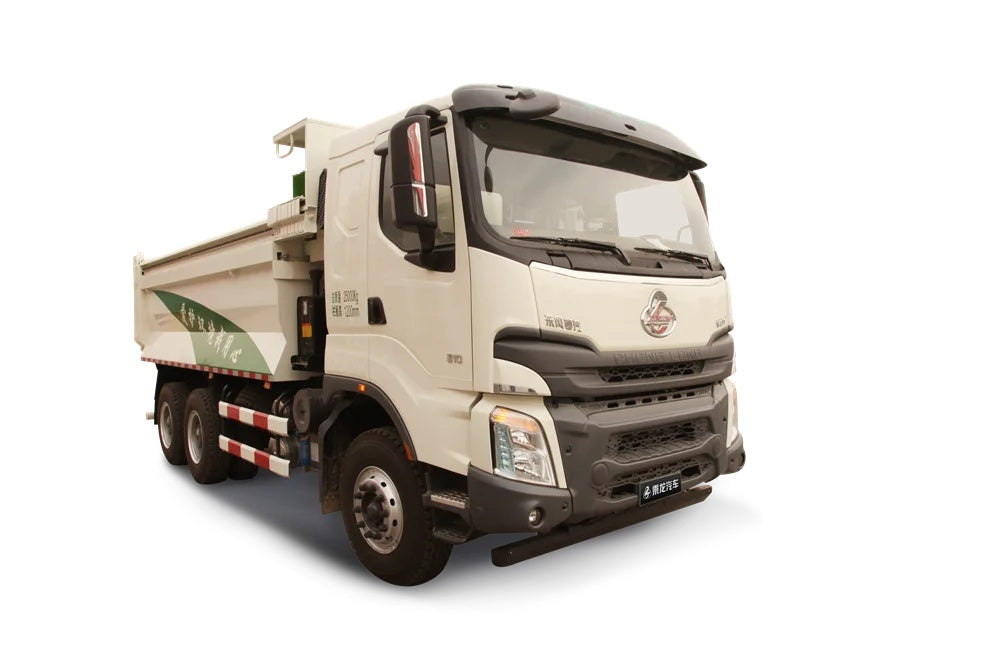

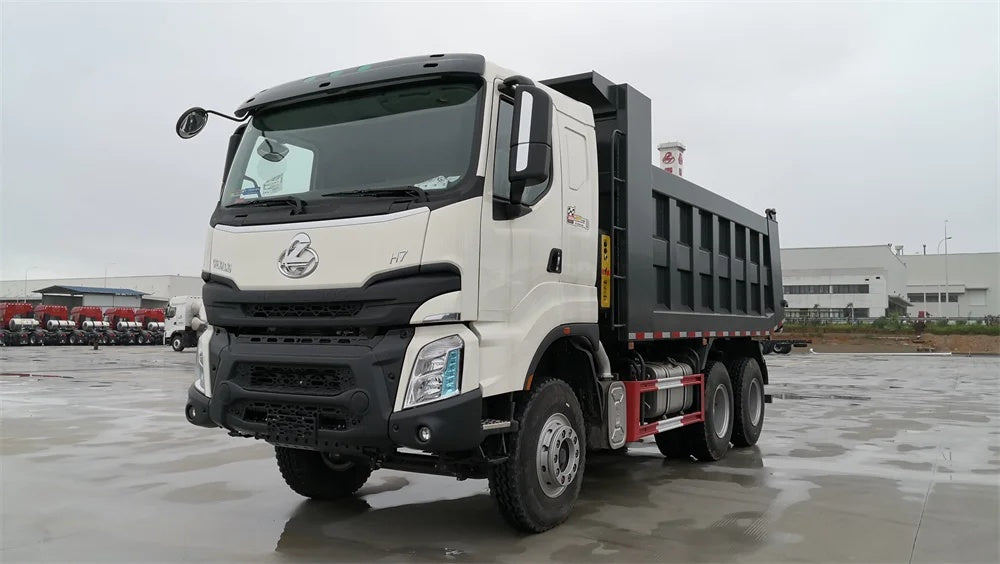

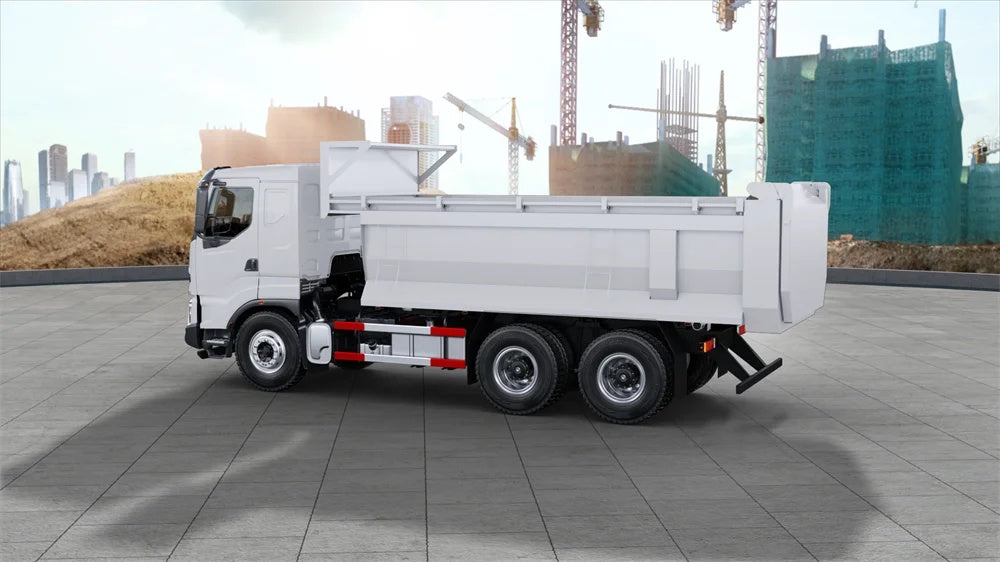

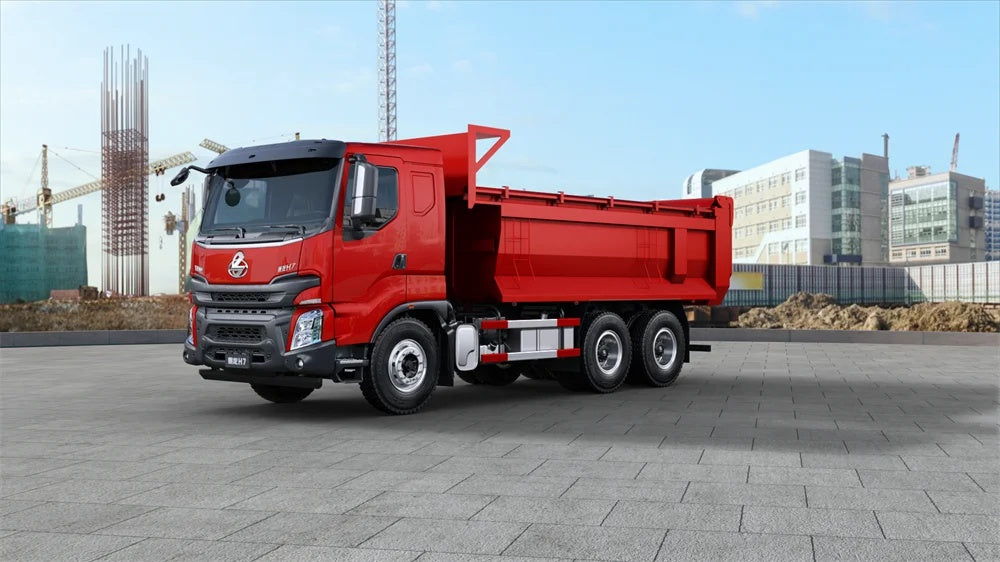

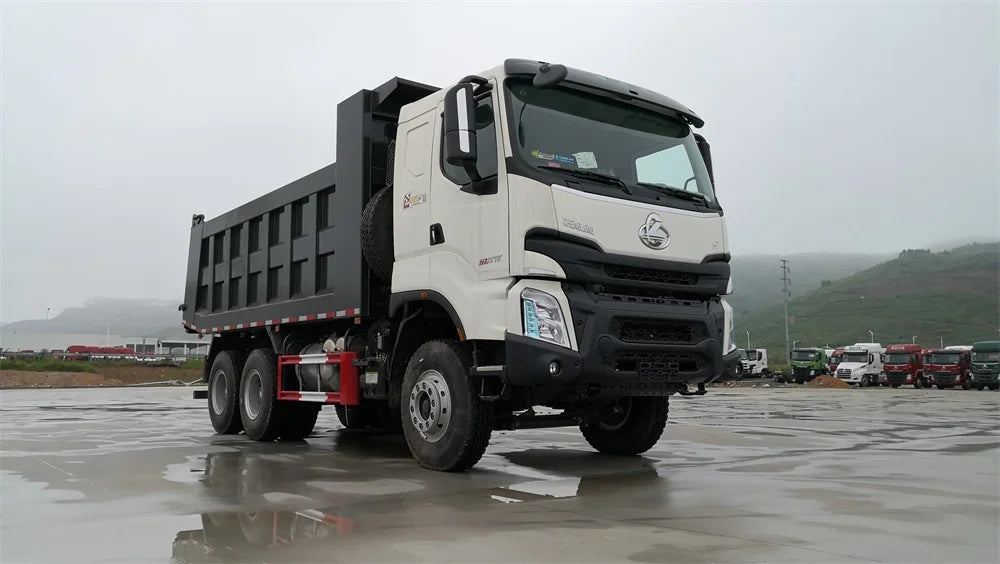

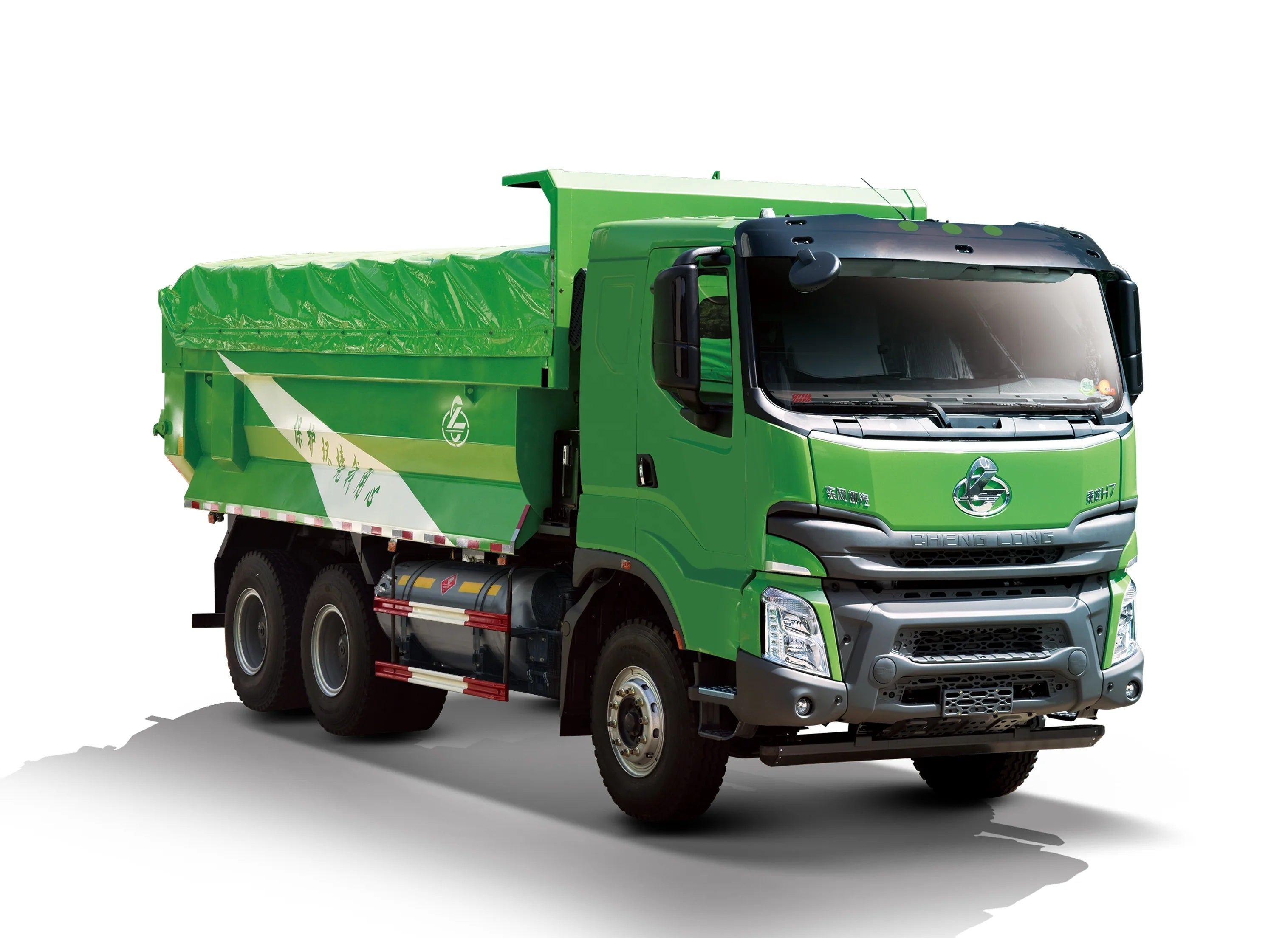

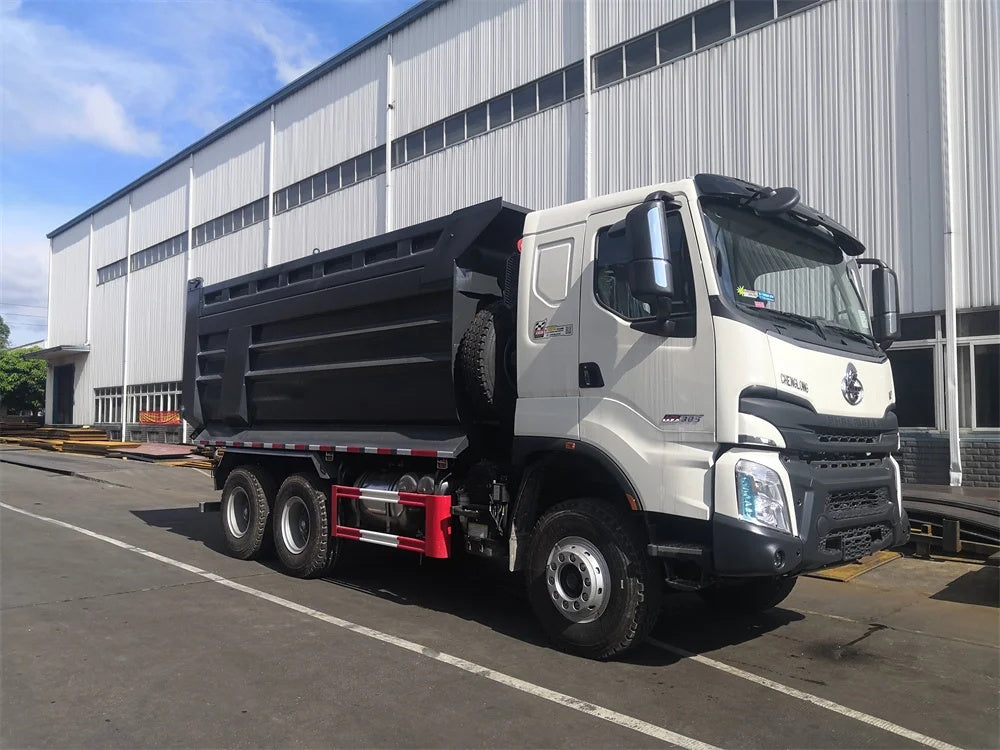

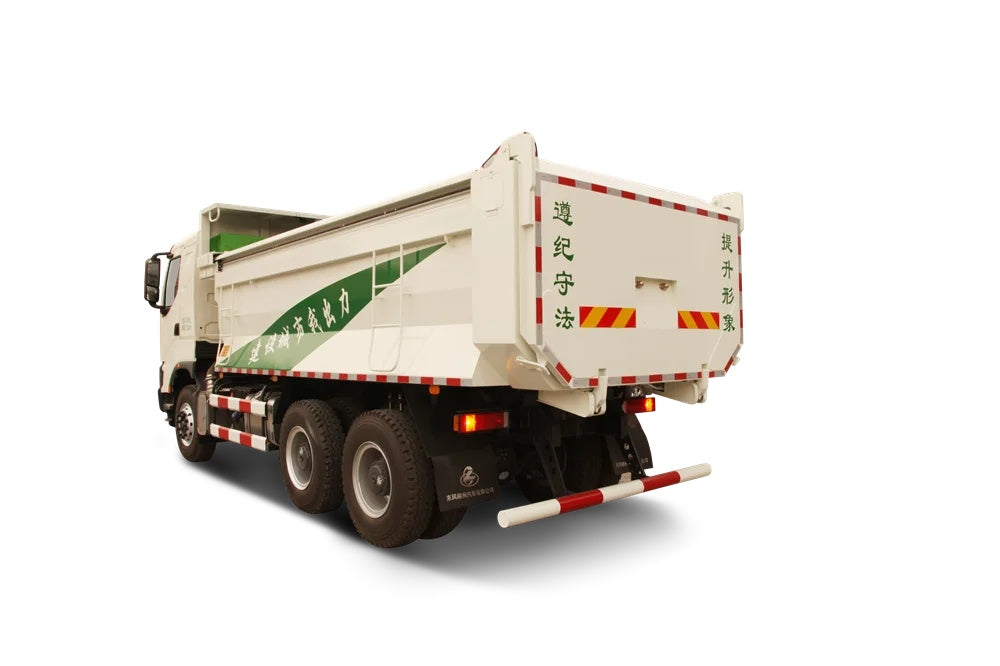

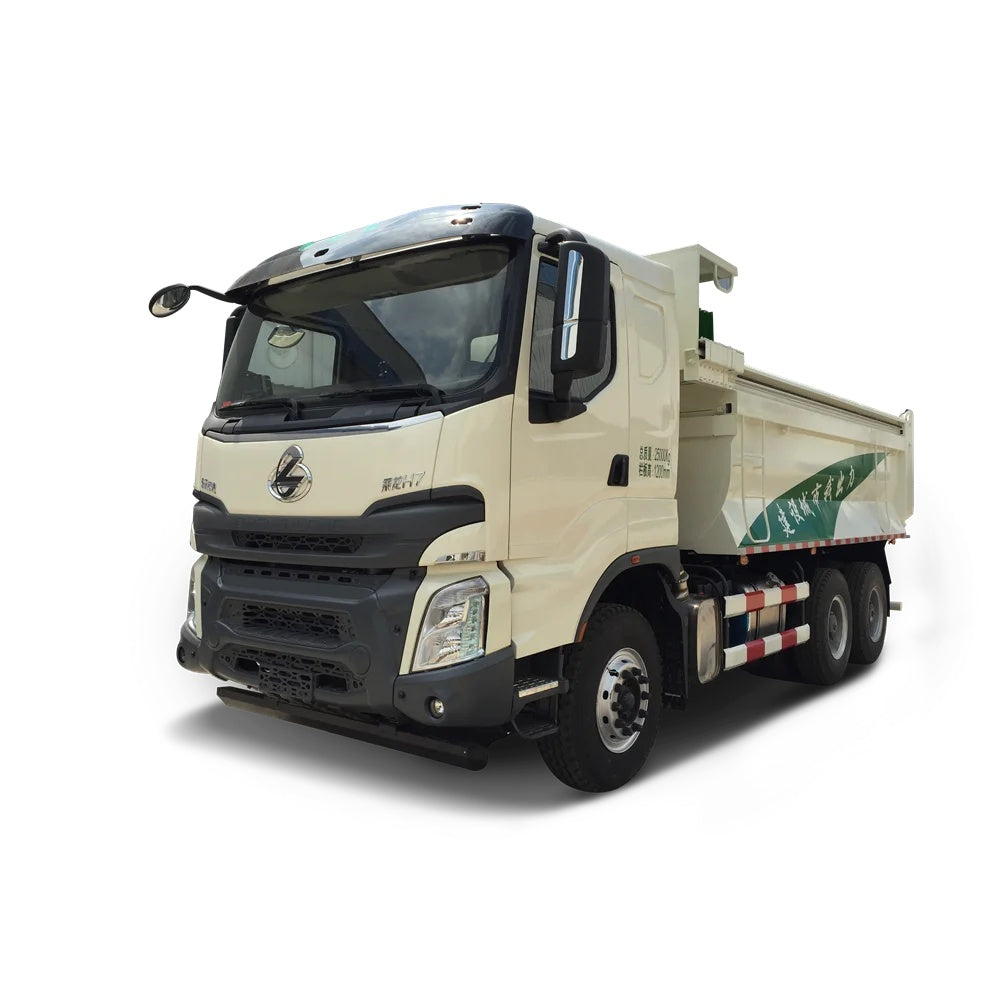

Model Name( Chenglong 6 × 4 Dump truck ) |
||
Model code |
3H7YM38D38W9B |
|
Max Payload |
45000kg |
|
Chassis Dimensions |
||
Chassis Dimensions(L*W*H) |
7650mm*2540mm*3350mm |
|
Wheel base |
3800+1350 |
|
Front/Rear wheel track |
2046mm/1868mm |
|
Front/Rear overhang |
1525mm/960mm |
|
vehicle weights |
||
G.V.W |
25000kg |
|
Curb weight |
10240kg (chassis) |
|
Frame profile Dimensions |
||
Frame width |
860mm |
|
Section height |
300mm |
|
Section thickness |
8mm+8mm |
|
Engine |
||
Type |
YC6MK385-50 |
|
Emission level |
Euro 5 |
|
Maximum power |
285Kw/1900rpm |
|
Maximum torque |
1800N.m/1100-1500rpm |
|
Number of cylinders |
6 |
|
Displacement |
10.338L |
|
Cylinder bore×Stroke |
123mm×145mm |
|
Clutch |
||
Plate's diameter |
φ430mm |
|
Operating system |
Hydraulic control with air booster,Pulling |
|
Gear box |
||
Type |
12JSD180T |
|
Number of gears |
12 forward gears& 2 reverse |
|
Gear ratios |
15.53；12.08；9.39；7.33；5.73；4.46；3.48；2.71；2.1；1.64；1.28；1.00； r1=14.86；r2=3.33 |
|
Axle |
||
Front Axle |
Rigid stubaxle with double T-cross section,dram brake |
|
9.5t |
||

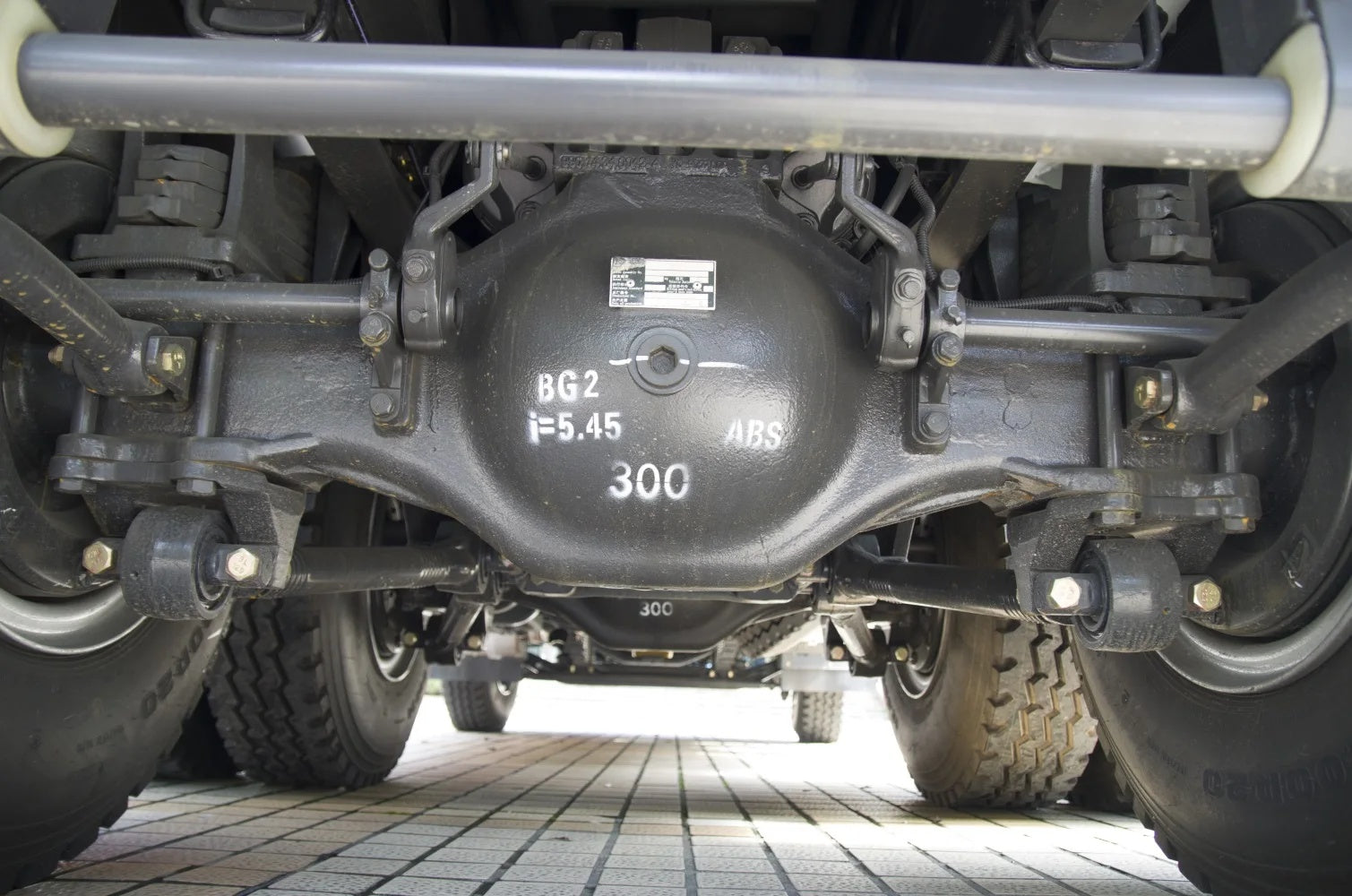

Rear Axle |
cast steel axle housing, two-stage reduction axle, differential lock between axle and wheel, speed ratio:5.262。 |
|
2×16t |
||
Suspension |
||
Front suspension |
11-Leaf spring with shock absorber and stabilizer bar |
|
Rear suspension |
13-leaf spring with stabilizer bar |
|
Battery |
||
Voltage |
24V |
|
Battery capacity |
150Ah（2） |
|
Fuel Tank |
||
Type |
Aluminum fuel tank |
|
Capacity |
350L |
|
Others |
||

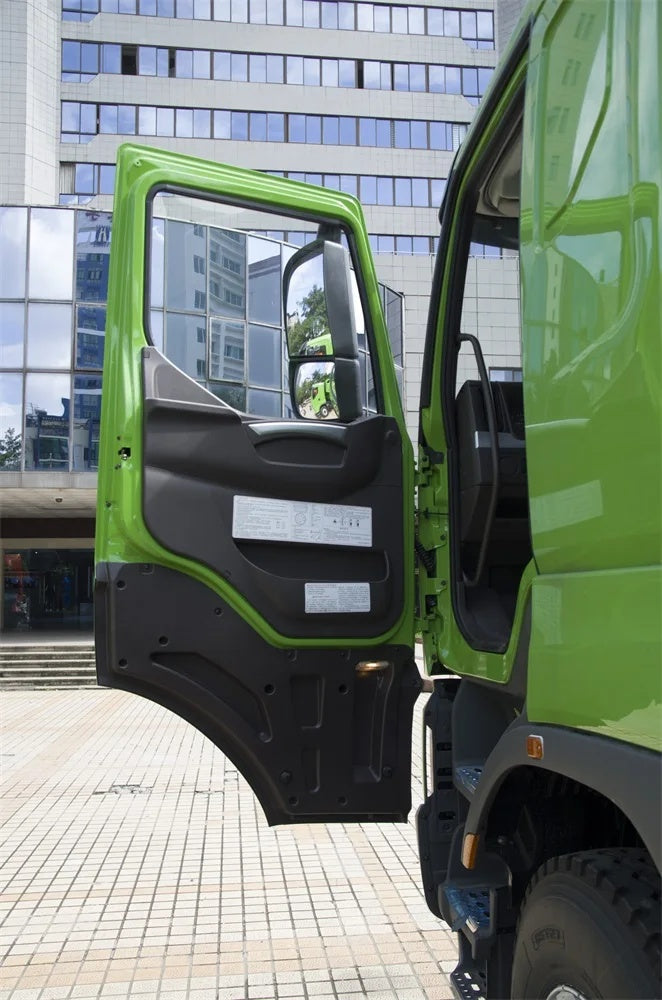

Cab |
H72S flat top single-bedroom cab, Mechanical full-floating cab suspension, electro-hydraulic flip, airbag shock-absorbing driver seat, power doors and windows, remote control center lock, under door trim, manual adjustment of split rearview mirror, automatic air conditioning, oil-bath air filter, full Vehicle WABCO valve, aluminum alloy gas cylinder, multi-state switch. |
|
Brake System |
Full air brake system,split pneumatic circuit；parking spring brake acting on rear axles, exhaust brake. |
|
Tyres |
12.00R20-18PR |
|
Minimum turning circle |
8800mm |
|
Minimum ground clearance |
302mm |
|
Maximum driving speed |
74 km/h |
|
Maximum gradeability |
≥30% |
|
Fuel consumption |
41L/100Km |
|
Dongfeng Liuzhou Motor Co., Ltd, founded in 1954, is an auto limited company built by Liuzhou Industrial Holdings Corporation and Dongfeng Auto Corporation.Located in Guangxi, it gradually covers more than 40 countries in the world, and has become a mainstream well-known brand in the key ASEAN countries.
It covers an area of 2.13 million square meters and has developed the commercial vehicle brand "Dongfeng Chenglong" with nearly 7000 employees currently.Its marketing and service network is throughout the whole country, and the products have been exported to many countries in Southeast Asia, the Middle East, South America and Africa.

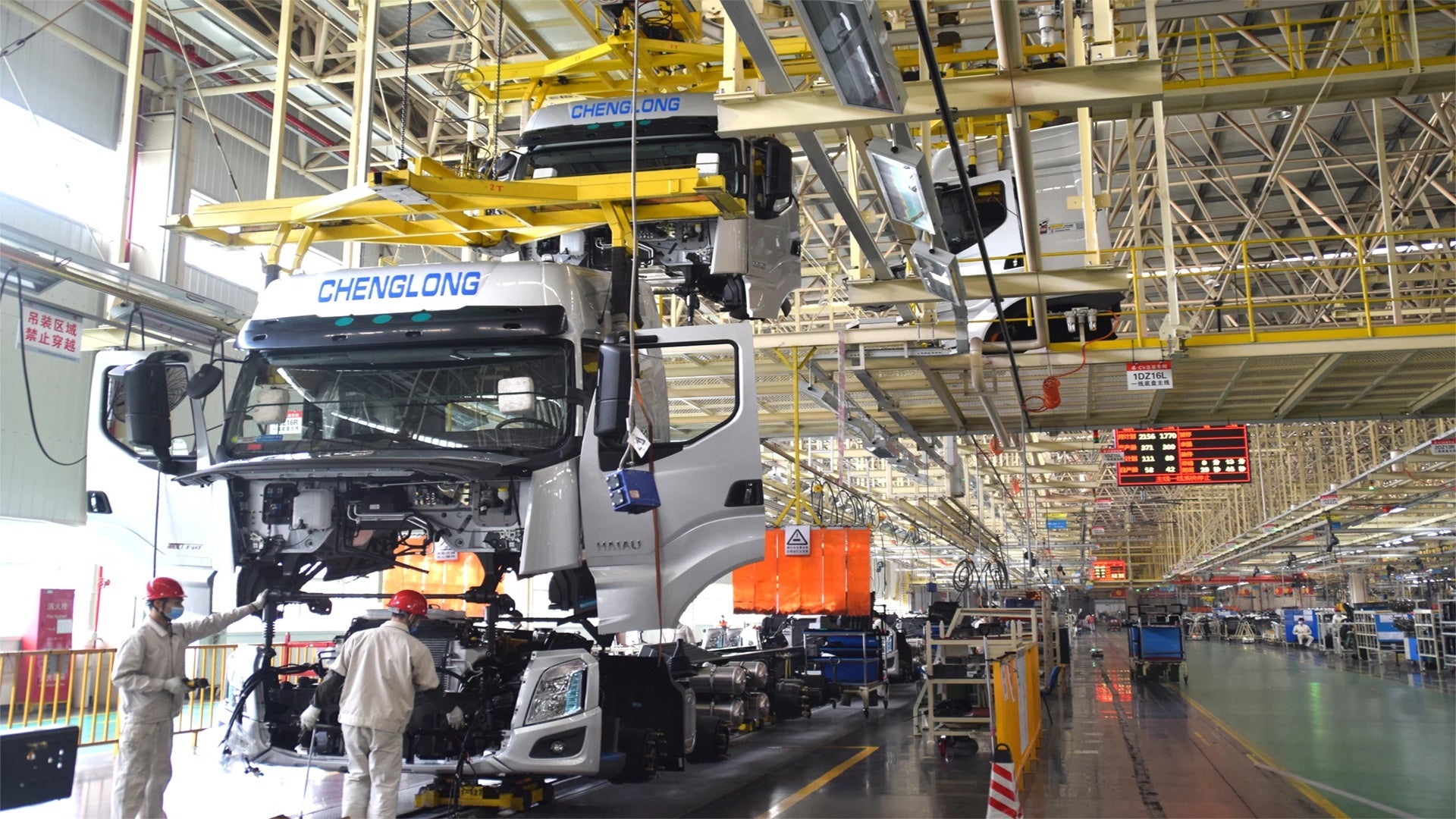

Dongfeng Liuzhou Motor has formed an annual production capacity of 200,000 commercial vehicles and 400,000 passenger vehicles.Based on the concept of “create value for customers and create wealth for the society”, it pays great attention to market trends and constantly develops high quality products and provides relevant services.
By the chances of our overseas marketing developing, we& # 39;re warmly welcome our potential partners from all over the world to visit us, we hope to achieve a long-run mutual cooperation and create a bright future together.
